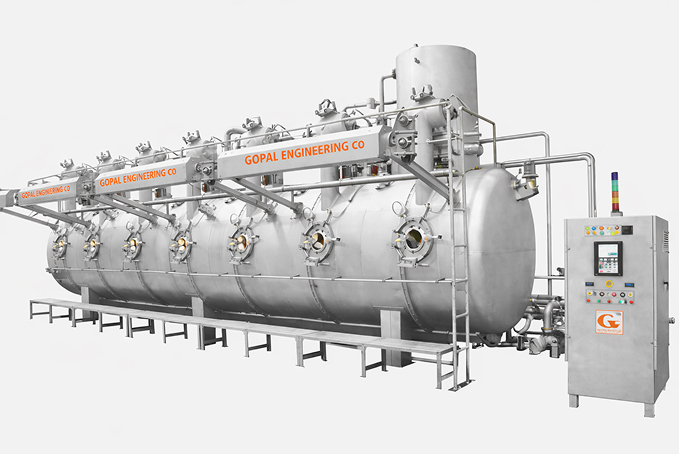

H.T.H.P. SOFT FLOW DYEING MACHINE
H.T.H.P. SOFT FLOW DYEING MACHINE
(SFDM Series – High Performance Textile Processing System)
Overview
The H.T.H.P. Soft Flow Dyeing Machine represents a benchmark in modern textile dyeing technology, engineered to deliver exceptional dyeing uniformity, operational efficiency, and long-term reliability. Designed for high-temperature and high-pressure applications up to 135°C, this system ensures deep and consistent dye penetration while preserving the structural integrity of both delicate and heavy fabrics.
Built for performance-driven textile manufacturers, this machine offers a powerful combination of precision engineering, resource optimization, and scalable production capability, making it a preferred solution in both domestic and international markets.
Key Features
Low Liquor Ratio Technology (1:4 to 1:3) for substantial reduction in water, chemical, and energy consumption
High-Temperature Operation up to 135°C for versatile fabric processing
Multi-Chamber Configuration (1–8 Chambers) enabling flexible and scalable production
Advanced Soft Flow Mechanism ensuring minimal fabric tension and zero damage
Heavy-Duty Stainless Steel Construction for durability and extended service life
Energy-Efficient Heating and Cooling System for optimized operational costs
Automation-Ready Control System with user-friendly interface
Technical Specifications
Operating Temperature: Up to 135°C
Heating Rate: Approx. 5°C/min (at 6 bar steam pressure)
Cooling Rate: Approx. 4°C/min (at 2 bar water pressure, 20°C)
- Fabric Speed: 2.5 – 3 m/min
- Liquor Ratio: Starting from 1:4, reducible to 1:3
Key Features
Low Liquor Ratio Technology (1:4 to 1:3) for substantial reduction in water, chemical, and energy consumption
High-Temperature Operation up to 135°C for versatile fabric processing
Multi-Chamber Configuration (1–8 Chambers) enabling flexible and scalable production
Advanced Soft Flow Mechanism ensuring minimal fabric tension and zero damage
Heavy-Duty Stainless Steel Construction for durability and extended service life
Energy-Efficient Heating and Cooling System for optimized operational costs
Automation-Ready Control System with user-friendly interface
Technical Specifications
Operating Temperature: Up to 135°C
Heating Rate: Approx. 5°C/min (at 6 bar steam pressure)
Cooling Rate: Approx. 4°C/min (at 2 bar water pressure, 20°C)
- Fabric Speed: 2.5 – 3 m/min
- Liquor Ratio: Starting from 1:4, reducible to 1:3
Machine Configuration & Power
The system is available with main pump capacities ranging from 7.5 HP to 70 HP, designed to meet diverse industrial requirements while ensuring optimal performance and energy efficiency.
Capacity Range
- Light Fabrics: 200 kg to 1600 kg
- Medium Fabrics: 250 kg to 2000 kg
- Heavy Fabrics / Terry Towels: 300 kg to 2800 kg
Engineered to deliver consistent and uniform results across all fabric categories, ensuring maximum productivity without compromising quality.
Machine Configuration & Power
The system is available with main pump capacities ranging from 7.5 HP to 70 HP, designed to meet diverse industrial requirements while ensuring optimal performance and energy efficiency.
Advanced System Components
High-performance main circulation pump
Automatic nozzle and plaiter arrangement
Programmable winch system for controlled fabric movement
Intelligent dosing and salt dosing system
Self-cleaning filtration unit
Vertical heat exchanger with integrated stock tank
Optional Enhancements
Inverter drive for precision pump control
Seam detection system for enhanced fabric safety
Internal spray cleaning system
Pneumatic drain and filling system
Anti-tangling safety mechanism
Additional water storage system
Fully automatic PLC-based control panel
Control Panel System
Equipped with an air-conditioned control panel, the system prevents moisture accumulation and ensures stable, uninterrupted operation, enhancing the longevity of critical electrical components.
Applications
Suitable for high-quality processing of:
- Cotton
- Polyester
- Blended fabrics
- Knitted and woven textiles
- Terry towels and high GSM fabrics
Widely implemented in textile dyeing units, processing houses, and garment finishing facilities.
Why Choose This Machine
The H.T.H.P. Soft Flow Dyeing Machine is designed to meet the demands of a competitive global textile industry. Its low liquor ratio technology, advanced automation, and precision engineering deliver superior output while significantly reducing operational costs.
It stands as a reliable, sustainable, and high-performance solution for manufacturers aiming to achieve international quality standards and scalable production growth.
Manufacturer’s Assurance
Every machine is backed by strong engineering expertise, customized solutions, and comprehensive after-sales support, including on-site training and technical assistance. The focus remains on delivering consistent performance, operational reliability, and long-term customer satisfaction.
Capacity Range
- Light Fabrics: 200 kg to 1600 kg
- Medium Fabrics: 250 kg to 2000 kg
- Heavy Fabrics / Terry Towels: 300 kg to 2800 kg
Engineered to deliver consistent and uniform results across all fabric categories, ensuring maximum productivity without compromising quality.
Machine Configuration & Power
The system is available with main pump capacities ranging from 7.5 HP to 70 HP, designed to meet diverse industrial requirements while ensuring optimal performance and energy efficiency.
Advanced System Components
High-performance main circulation pump
Automatic nozzle and plaiter arrangement
Programmable winch system for controlled fabric movement
Intelligent dosing and salt dosing system
Self-cleaning filtration unit
Vertical heat exchanger with integrated stock tank
Optional Enhancements
Inverter drive for precision pump control
Seam detection system for enhanced fabric safety
Internal spray cleaning system
Pneumatic drain and filling system
Anti-tangling safety mechanism
Additional water storage system
Fully automatic PLC-based control panel
Control Panel System
Equipped with an air-conditioned control panel, the system prevents moisture accumulation and ensures stable, uninterrupted operation, enhancing the longevity of critical electrical components.
Applications
Suitable for high-quality processing of:
- Cotton
- Polyester
- Blended fabrics
- Knitted and woven textiles
- Terry towels and high GSM fabrics
Widely implemented in textile dyeing units, processing houses, and garment finishing facilities.
Why Choose This Machine
The H.T.H.P. Soft Flow Dyeing Machine is designed to meet the demands of a competitive global textile industry. Its low liquor ratio technology, advanced automation, and precision engineering deliver superior output while significantly reducing operational costs.
It stands as a reliable, sustainable, and high-performance solution for manufacturers aiming to achieve international quality standards and scalable production growth.
Manufacturer’s Assurance
Every machine is backed by strong engineering expertise, customized solutions, and comprehensive after-sales support, including on-site training and technical assistance. The focus remains on delivering consistent performance, operational reliability, and long-term customer satisfaction.
SOFT FLOW DYEING MACHINE (LIGHT FABRIC)
| Capacity | Fabric Guide Tube | Power (HP) Main Pump | Width | Length | Height |
| 200 Kg | 1 | 7.5 HP | 1900 | 4100 | 3900 |
| 400 Kg | 2 | 10 HP | 2800 | 4100 | 3900 |
| 600 Kg | 3 | 15 HP | 3600 | 4100 | 3900 |
| 800 Kg | 4 | 25 HP | 4300 | 4100 | 3900 |
| 1000 Kg | 5 | 30 HP | 5000 | 4100 | 3900 |
| 1200 Kg | 6 | 35 HP | 5700 | 4100 | 3900 |
| 1400 Kg | 7 | 40 HP | 6500 | 4100 | 3900 |
| 1600 Kg | 8 | 50 HP | 7200 | 4100 | 3900 |
SOFT FLOW DYEING MACHINE (MEDIUM FABRIC)
| Capacity | Fabric Guide Tube | Power (HP) Main Pump | Width | Length | Height |
| 250 Kg | 1 | 7.5 HP | 2000 | 4100 | 3900 |
| 500 Kg | 2 | 15 HP | 3000 | 4100 | 3900 |
| 750 Kg | 3 | 20 HP | 3800 | 4100 | 3900 |
| 1000 Kg | 4 | 30 HP | 4500 | 4100 | 3900 |
| 1250 Kg | 5 | 35 HP | 5200 | 4100 | 3900 |
| 1500 Kg | 6 | 40 HP | 6000 | 4100 | 3900 |
| 1750 Kg | 7 | 50 HP | 6800 | 4100 | 3900 |
| 2000 Kg | 8 | 50 HP | 7700 | 4100 | 3900 |
SOFT FLOW DYEING MACHINE (LOW FABRIC – Medium & Heavy Fabric)
| Capacity | Fabric Guide Tube | Power (HP) Main Pump | Width | Length | Height |
| 300 Kg | 1 | 10 HP | 2600 | 4800 | 4200 |
| 600 Kg | 2 | 20 HP | 3500 | 4800 | 4200 |
| 900 Kg | 3 | 30 HP | 4200 | 4800 | 4200 |
| 1200 Kg | 4 | 40 HP | 5000 | 4800 | 4200 |
| 1500 Kg | 5 | 50 HP | 5900 | 4800 | 4200 |
| 1800 Kg | 6 | 50 HP | 6600 | 4800 | 4200 |
| 2100 Kg | 7 | 60 HP | 7300 | 4800 | 4200 |
| 2400 Kg | 8 | 70 HP | 8000 | 4800 | 4200 |
SOFT FLOW DYEING MACHINE (HEAVY FABRIC)- TERRY TOWEL
| Capacity | Fabric Guide Tube | Power (HP) Main Pump | Width | Length | Height |
| 400 Kg | 1 | 15 HP | 2800 | 4800 | 4200 |
| 800 Kg | 2 | 20 HP | 4000 | 4800 | 4200 |
| 1200 Kg | 3 | 30 HP | 5000 | 4800 | 4200 |
| 1600 Kg | 4 | 40 HP | 5900 | 4800 | 4200 |
| 2000 Kg | 5 | 50 HP | 6700 | 4800 | 4200 |
| 2400 Kg | 6 | 60 HP | 7600 | 4800 | 4200 |
| 2800 Kg | 7 | 70 HP | 8500 | 4800 | 4200 |
